3535 Clean quartz UVC led

UVC LED Package 3535 60°

• Features

* Emitted Color: UVC

* Lens Appearance: Clean quartz lens

* Dimensions:3.5*3.5mm
* Power:25-30mW
* Optical Angle:60 degree
* Current:150mA
* Voltage:6.5V
* Wavelengths: 270-280nm

• Applications

1.Sterilize

• Soldering:

1. Manual Soldering

The temperature of the iron tip should not be higher than 350℃and Soldering time to be within 3 seconds per

solder-pad.

2. Reflow Soldering

Preheating : 140℃~160℃±5℃,within 2 minutes.

Operation heating : 260℃(Max.) within 10 seconds.(Max)

Gradual Cooling (Avoid quenching)

• Storage

In order to avoid the absorption of moisture, it is recommended to solder BINGRI LEDs as soon as possible after

unpacking the sealed envelope.

If the envelope is still packed, to store it in the environment as following:

(1)Temperature : 5℃-30℃(41℉)Humidity : RH 60﹪Max.

(2)After this bag is opened, devices that will be applied to infrared reflow, vapor-phase reflow, or equivalent

soldering process must be:

a. Completed within 168 hours.

b. Stored at less than 30% RH.

(3)Devices require baking before mounting, if:

(2) a or (2) b is not met.

(4)If baking is required, devices must be baked under below conditions:

48 hours at 60℃±3℃

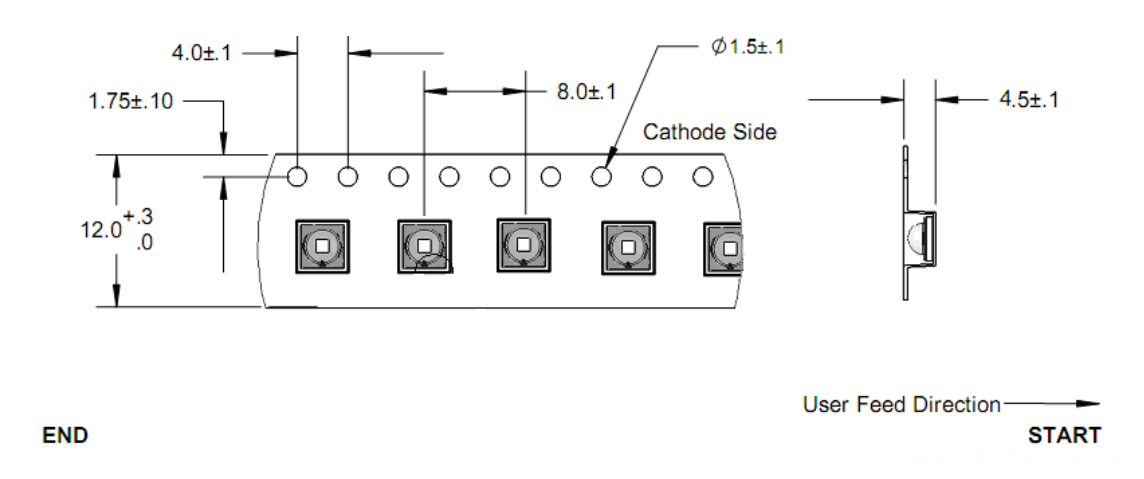

• Tapping and packaging specifications (Units: mm)

* Widely used in surface sterilization,air sterilization,water sterilization,and has a high usage rate in biomedicine.

Contact us if you need more details on Uv-c Lights for Antisepsis. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Uv-c Lights for Sterilization、Uv-c Lights for Disinfection. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : UVC Germicidal Series > UVC 3535 Series
